Separator Metallicus Pneumaticus pro Granulis Plasticis Modificatis in Systema Alimentationis Centrali

Lorem background

A plastic injection molding manufacturer uses a centralized material feeding system to pneumatically transport modified plastic pellets to multiple injection molding machines.

Durante le processus de transmissio, le material se move per le tubulatione a alta velocitate sub un fluxo aere continuo. Licet iste systema offre un tractamento de material efficiente e automatico, le ambiente de transmissio pneumatico a alta velocitate crea difficultates addicional pro le separation de metallo.

Le cliente requireva un separatore de metallo que poteva eliminar reliablemente le contaminantes metallicos sin affectar le pression de transmissio, le fluxo de material o le pulchritudine del ambiente de production.

Difficultates in le transmissio pneumatico

Le processo de transmissio pneumatico a alta velocitate presentava tres difficultates principal.

1. Electricitate statica

Le friction continuo inter le granulos plastic e le pariete interne del tubulatione pote generar electricitate statica. Le accumulation de electricitate statica pote interferir con le detection stabile e crear rischos addicional durante le transmissio del material.

2. Performantia de hermeticitate

Systema operatur sub aere continuo presso. Structura separatio conventionalis pulverem materiae tenuis in processu rejectionis emittere potest, quod ad amissionem materiae et ad impuritatem fabricae afficere potest.

3. Rejectionis Celeritas et Fiducia

Granula plastica per tubum cito moventur. Ergo mechanismus rejectionis celeriter respondere debet ut contaminantes metallici detecti removantur sine omissione materiae contaminatae.

Simul systema per operationem aerem effundere potest, quod ad pressionis amissionem in tubo transportante ducit.

Solutio COSO Adaptata

Ad has necessitates explendas, COSO adaptavit et optima fecit separatorem metallicum pneumaticum speciatim pro condicionibus pneumaticis transportandi clientis.

Constructio ex Acciaio Inox et Protectio contra Staticam

Corpus principale separatoris ex acciaio inox constat, ut accumulatio materiae et risus deformationis minuantur, dum fluxus materiae lenis manet.

The pipeline is made from high-temperature-resistant material and treated with a graphite coating. This design helps dissipate static electricity generated during high-speed material conveying, providing a more stable detection environment.

Enclosed Rejection Structure

When metal contamination is detected, the rejection system responds immediately and diverts the contaminated material into the defective outlet. The rejected material remains isolated from the main conveying line until the current material suction cycle is completed.

This enclosed rejection structure allows the separation process to take place without opening the conveying pipeline to the surrounding environment.

Integrated Conveying & Detection System

1. Airflow remains contained within the conveying system.

2. Conveying pressure is maintained.

3. Powder and fine material are prevented from escaping into the factory.

4. Fast rejection system response helps reduce missed contaminants.

5. Material contaminatus colligi et expelli potest post cyclus transvectionis.

Institutio et Integratio Systematis

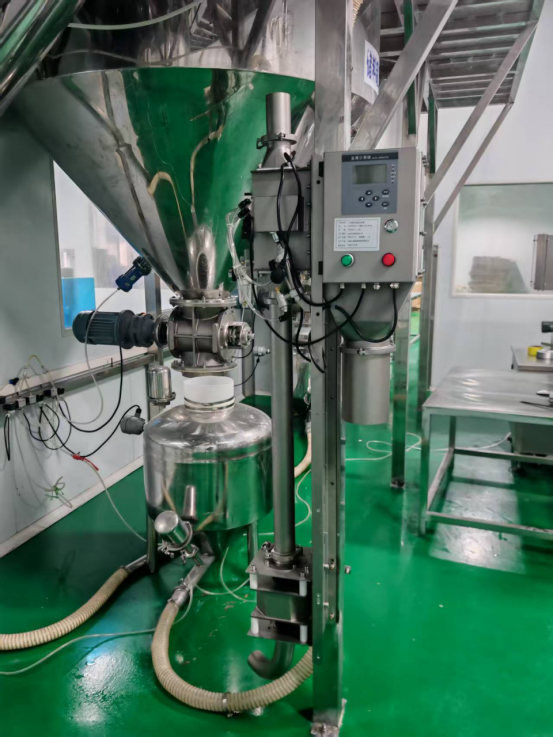

Separator metallicus pneumaticus directe integrari potest in systema alimentationis centralis praesens clientis. Secundum dispositionem tubulorum et spatium installationis disponibile, separator configurari potest pro installatione verticali, horizontali, aut inclinata.

Optiones connexiones rapidas et flangae etiam disponibiles sunt ad integrationem simplicem cum variis configurationibus tubulorum. Haec designatio flexibilis permittit installationem separatoris metallici sine magnis modificationibus systematis transvectionis materialis praesentis.

Applicatio

Cum separatori metallico pneumatico ad mensuram factus, cliens protectionem continuam contra contaminationem metallicam pro granulis plasticis modificatis durante transvectione pneumatica alta velocitate accepit.

Haec solutio praebet:

1. Detectionem metallicam fidam in fluxu materialis alta velocitate.

2. Administrationem efficacem electricitatis staticae

3. Rejectionem inclusam cum meliori performance sigillandi

4. Eliminatio rapida contaminantium cum minore risu rejectionis praetermissae

5. Minima amissio materiae durante rejectione

6. Pressio stabilis transportans

7. Facilis integratio cum systematibus centralibus alimentationis iam existentibus

Designatio ad usum specialem permittit separationem fidam metallorum etiam sub condicionibus difficilibus transvectionis pneumaticae, auxiliante fabricantibus modellationis per injectionem ut protegant apparatus infra fluxum et servent productionem stabilem, puram et continuam.
